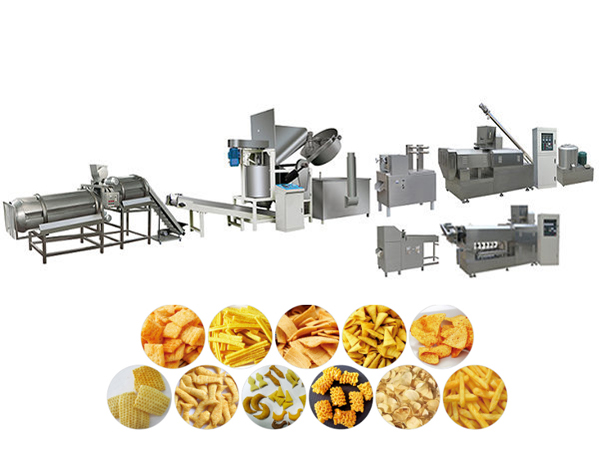

We are a manufacturer of fully automated puffed food production lines. Puffed snack is a brittle food with a smooth texture and a rich grain flavor. With the improvement of national living standards and changes in lifestyle, various grain snacks have quickly entered millions of households as a convenient, fast, and nutritious snack. This snack food production line has the characteristics of multiple optional models, flexible equipment configuration, wide range of raw materials, multiple product types, and simple operation. By changing different molds and production processes, various popular snack foods in the market can be produced, suitable for various food manufacturers.

Process flow of puffed food production line:

Process flow of puffed food equipment production line: raw material preparation → mixing → conveying → extrusion puffing → conveying → drying → (screening) → oil spraying → seasoning → (packaging)

Equipment configuration:

Mixing machine → Spiral feeding machine → Double screw puffing machine → Air blower → Multi layer oven → Elevator → Oil sprayer → Double drum seasoning machine/Octagonal drum seasoning machine → (packaging machine)

Process composition of puffed food production line:

1. Powder mixer: Select different models of powder mixers according to the production line output.
2. Spiral feeding machine: using spiral stirring conveying to ensure secondary uniform mixing and convenient and fast feeding.
3. Twin screw extruder: different models of extruder are selected according to different production lines, with the output of 100kg/h -500kg/h, which can be made of corn flour, Rice noodles, wheat barley flour and other cereals.
4. Air blower or elevator: Transport semi-finished products to the oven, and the height of the air blower or elevator is determined according to the oven.
5. Multi layer oven: The oven is mostly an electric oven, with a temperature adjustable between 0-200 degrees through a control cabinet. The interior is made of stainless steel mesh cloth and stainless steel mesh belt, and the baking time can be adjusted according to the speed. 6. Vibration screen: Screen out unqualified products and crushed materials. (Optional)
6. Seasoning line: octagonal tube, cylindrical tube, lifting single drum, double drum seasoning line, configured according to production volume and product properties.

Model number	SR65 Main engine production line	SR70 Main engine production line	SR85 Main engine production line
Final assembly capacity	80KW	100KW	140 KW
Real power consumption	56 KW	80KW	100 KW
Productive capacity	100-150 kg/h	250-300 kg/h	300-400 kg/h
Overall dimension	16500x2250x2900mm	20000x2250x2800mm	23000x2250x2800mm

after-sale service:

☆ We provide you with professional consultation on market, equipment, technology, raw materials, packaging, and other aspects.

Assist you in equipment selection, process design, and factory optimization layout. If needed, on-site service is available.

☆ We can design compensation plans for changes in raw materials for your product and conduct on-site demonstrations. Provide various basic formulas.

Specialized design, manufacturing, and application testing can be conducted according to your needs, and targeted training can be provided.

☆ We will design a reasonable packaging and transportation plan for you, handle transportation on your behalf, send technical personnel to install, debug, and train personnel on-site.

★ One year equipment warranty, long-term discounts, and supply of spare parts.

☆ Undertake the design and processing of similar imported equipment components.
